The 5S-FE ended up being available in a few variants each getting recognized by valve address design. Initial generation, introduced into the 1990--92 Celica GT/GT-S and MR2, had a power score of 130 hp and 144 lbs-ft/torque. The 2nd generation had been launched in 1993 using the fifth generation (ST184) Celica, and continued through the 6th generation (ST204) Celica. The second generation was also utilized in the MR2 (SW21) and Camry/Scepter (XV10) show and had a power production of 135 hp and 145 lbs-ft/torque. They have a little less hostile cams, no cool start injector, a knock sensor, and more aggressive tuning to give it somewhat most energy. In states that had adopted California emission guidelines the 5S-FE is ranked at 130 hp and 145 lbs-ft/torque due mainly to emission products familiar with meet those emission laws. The third generation had been the final 5S-FE engine produced and was found in the 1997--01 Camry XV20 and 1999--01 Camry Solara; but from 1996 onward, the engine gotten a crank direction sensor rather than a cam direction sensor for a smoother idle. From 1997 to 1999 the engine produced 133 hp at 5,200 rpm and 147 lbs-ft/torque at 4,400 rpm. From 2000 to 2001, the motor gotten moderate modifications to improve power output to 136 hp at 5,200 rpm and 150 lbs-ft/torque at 4,400 rpm. The 5S-FE is replaced in all programs because of the 2.4 L 2AZ-FE.

Ca specification 1994-1996 5S-FEs into the Celica and Camry made use of air-assisted, 250 cc injectors, and sequential gas injections for reduced emissions over the grouped (2+2) firing system. The 1994-1995 MR2 failed to obtain this changes, nor performed Camrys/Celicas in national emissions shows.

Camry 5S-FEs have a counter-rotating stability shaft assembly to reduce noise, vibration, and harshness. They decrease the 2nd order vibrations typical to 4-cylinder motors by spinning at twice as much crankshaft speed. The 1994-1999 Celica and 1991-1995 MR2 5S-FEs shortage these balance shafts, so any 5S-FE motor with balance shafts likely came from a Camry.

In 1997, when it comes to fourth generation Camry, the 5S-FE had been updated the past time. This system received a primary ignition program with exterior camshaft and crankshaft detectors. This method put a waste-spark build, and also the coils have integrated igniters. The engine couldn't use a typical coil-on-plug build, but instead two coil+igniter assemblies attached near cylinder four, and offered spark via regular high-tension cords (spark plug cables). This modification implies that the 1997-01 Camry 5S-FE has actually a blocked off provider mounting opening and may be applied with older 5S-FEs without swapping cylinder minds.

The 1997-99 Camry 5S-FE carried on aided by the air-assisted, 250 cc injectors. The Camry 5S-FE additionally have a factory 4-to-1 fatigue build - in government type, it had no pre-catalyst, although the California version performed replace the collector build of the Federal variation with a warm-up pre-catalyst for decreased cool start emissions.

For 2000 Toyota eliminated the air-assisted injectors and moved to superfine atomization (~50 micrometers), 12-hole, 235 cc injectors made by Denso. These are generally of another type of design, and required a modification of the cylinder mind casting.

For 2001 Toyota begun installing factory MLS (multi-layer metal) mind gaskets alongside steel gaskets layered with Viton to engines, such as the 5S-FE. MLS head gaskets require cylinder head and cylinder block resurfacing on older motors to make certain correct sealing; consequently, the MLS head gasket didn't supersede the old composite mind gasket.

The 1994-99 Celica 5S-FE had not been up-to-date with your changes, and proceeded to utilize a supplier plus the old electronic control system and injectors. Any used engine noted as a 1997-01 Camry 5S-FE with a distributor are a Celica 5S-FE or elderly Camry 5S-FE.

Toyota's 5S-FE ended up being a 2.2-litre four-cylinder inline petrol engine. The 5S-FE had been a non-interference engine and provided numerous qualities aided by the 3S-FE, but had been distinguished by their increasing bore and swing. Crucial features of the 5S-FE engine integrate its cast-iron block, aluminum alloy cylinder mind, dual overhead camshafts and 9.5:1 compression.

During their production, the 5S-FE underwent two distinct news, occasionally referred to as the next and third 'generations' or 'revisions'

Expense camshaft, generally abbreviated to OHC, was a valvetrain setup which puts the camshaft of an internal burning engine of the reciprocating type within the cylinder minds ("above" the pistons and combustion chambers) and pushes the valves or lifters in an even more direct way weighed against expense valves (OHV) and pushrods.

Compared with OHV pushrod systems with the same few valves, the reciprocating the different parts of the OHC program is a lot fewer and have a diminished overall size. Although system that drives the camshafts is more complicated, many system providers take that included difficulty as a trade-off for best system overall performance and better design versatility. The basic reason for the OHC valvetrain is it offers a rise in the engine's power to trade induction and fatigue gases (this exchange is sometimes generally "engine breathing"). Another results advantage is gained as a consequence of the greater optimised interface configurations authorized with expense camshaft design. Without intrusive pushrods, the expense camshaft cylinder mind design may use straighter harbors of most advantageous cross-section and size. The OHC design enables greater engine speeds than similar cam-in-block design, as a consequence of creating reduced valvetrain size. The higher motor rates therefore let increases energy production for certain torque production.

Disadvantages regarding the OHC design include the difficulty for the camshaft drive, the need to re-time the drive system every time the cylinder head is removed, plus the ease of access of tappet modification if required. In early in the day OHC systems, like inter-war Morrises and Wolseleys, oils leakages within the lubrication systems were in addition a problem.
Solitary expense camshaft
A Honda D15A3 series solitary overhead camshaft cylinder mind from a 1987 Honda CRX 4 cylinder 12 valve.

Single expense camshaft (SOHC) is a design by which one camshaft is placed within the cylinder head. In an inline motor, what this means is discover one camshaft inside head, while in a system with over one cylinder head, particularly a V engine or a horizontally-opposed system (boxer; level engine) -- there are two camshafts, one per cylinder bank.

Into the SOHC design, the camshaft runs the valves right, traditionally via a container tappet; or via an intermediary rocker supply. SOHC cylinder minds are less expensive to produce than dual overhead camshaft (DOHC) cylinder heads. Timing buckle replacement may be easier since there are a lot fewer camshaft drive sprockets that have to be lined up throughout the substitution procedure.

SOHC design provide paid off complexity compared with overhead valve styles when utilized for multivalve cylinder minds, which each cylinder features over two valves. An example of an SOHC build using shim and container valve modification was the engine put in in the Hillman Imp (four-cylinder, eight valve), a little, early-1960s two-door saloon vehicles (sedan) with a rear-mounted aluminium-alloy engine in line with the Coventry orgasm FWMA battle machines. Exhaust and inlet manifolds are both on a single side of the system block (therefore not a crossflow cylinder mind design). This did, however, provide exceptional usage of the spark plugs.

In the early 1980s, Toyota and Volkswagen team also made use of a right actuated SOHC synchronous device setup with two valves for every single cylinder. The Toyota system made use of hydraulic tappets. The Volkswagen program used container tappets with shims for valve-clearance modification.

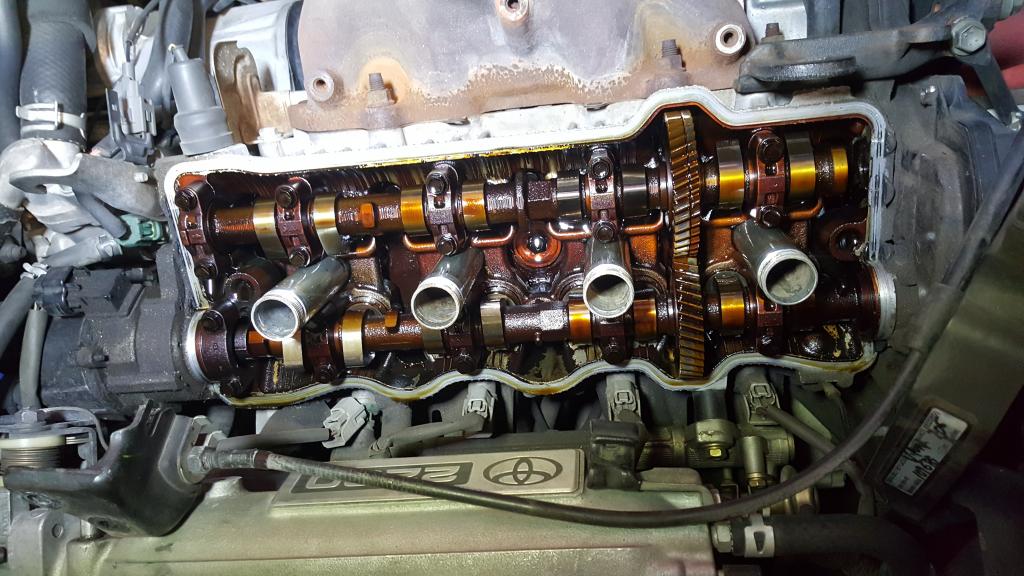

a double expense camshaft (DOHC) valvetrain layout are characterised by two camshafts present in the cylinder head, one running the intake valves in addition to other one operating the fatigue valves. This build decreases valvetrain inertia above is the case with an SOHC motor, since the rocker arms tend to be lower in dimensions or eradicated. A DOHC build permits a wider angle between intake and exhaust valves than in SOHC motors. This can offer a less restricted airflow at higher system rates. DOHC with a multivalve build also enables the optimum keeping the spark plug, which in turn gets better burning effectiveness. Engines creating more than one lender of cylinders (e.g. V6, V8 -- in which two-cylinder financial institutions satisfy to create a "V") with two camshafts overall stay SOHC and "double cam" unless each cylinder lender has actually two camshafts; the latter were DOHC, and they are often known as "quad cam".

Although the term "double cam" is generally always reference DOHC machines, it's imprecise, because it includes designs with two block-mounted camshafts. For example the Harley-Davidson Twin Cam system, Riley automobile engines from 1926 towards the mid 1950s, Triumph bike parallel-twins from 1930s on 1980s, and Indian Chief and Scout V-twins from 1920 to your 1950s.

The terminology "multivalve" and "DOHC" never reference exactly the same thing: not absolutely all multivalve engines were DOHC rather than all DOHC motors are multivalve. Samples of DOHC engines with two valves per cylinder are the Alfa Romeo Twin Cam system, the Jaguar XK6 engine plus the Lotus Ford Twin Cam engine. Most recent DOHC motors is multivalve, with between three and five valves per cylinder.

a dual overhead camshaft (DOHC) valvetrain design was characterised by two camshafts operating inside the cylinder mind, one operating the intake valves therefore the other one running the fatigue valves. This build decrease valvetrain inertia significantly more than is the case with an SOHC engine, since the rocker arms are lower in dimensions or eradicated. A DOHC build permits a wider perspective between consumption and fatigue valves than in SOHC machines. This will provide a less restricted airflow at greater system speeds. DOHC with a multivalve build in addition permits the optimum keeping the spark plug, which in turn improves burning efficiency. Engines creating more than one lender of cylinders (e.g. V6, V8 -- in which two cylinder banks fulfill to make a "V") with two camshafts overall remain SOHC and "double cam" unless each cylinder bank features two camshafts; the latter is DOHC, and generally known as "quad cam".

Even though the term "double cam" is often accustomed relate to DOHC motors, it's imprecise, since it include designs with two block-mounted camshafts. For example the Harley-Davidson Twin Cam motor, Riley vehicle motors from 1926 towards the middle 1950s, victory bike parallel-twins from 1930s into the 1980s, and Indian main and Scout V-twins from 1920 into 1950s.

The terms "multivalve" and "DOHC" don't reference the same thing: not totally all multivalve motors are DOHC and never all DOHC machines is multivalve. Types of DOHC motors with two valves per cylinder include the Alfa Romeo Twin Cam system, the Jaguar XK6 engine additionally the Lotus Ford Twin Cam system. Latest DOHC motors is multivalve, with between three and five valves per cylinder.

Toyota 5S Engine | Turbo, upgrades, engine oil, etc.

Toyota 5S-FE engine reliability, problems and repair. The engine Toyota 5S was produced in 1990. The 3S engine was taken as a model. Its cylinder diameter was enlarged to 87.1 mm and a brand new crankshaft with a 90.9 mm piston stroke was mounted.

Toyota 5SFE 2.2 Long Block Crate Engine Sale

Our Toyota 5S-FE 2.2 liter Long Block Crate Engine is on sale. This 2.2 engine was introduced to the market in 1992 and became most popular for its use in the Toyota Camry and Solara models. Earlier generation motors we're prone to an excess of noise and vibration.

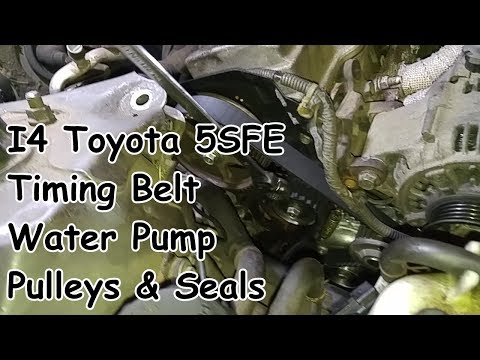

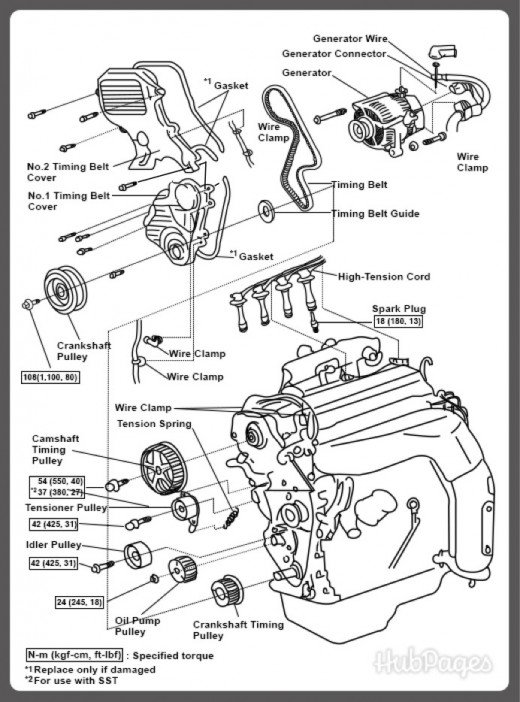

How to replace timing belt Toyota Camry 2.2 5S-FE engine

How to replace timing belt Toyota Camry 2.2 5S-FE engine. Years 1990 to 2002.

Toyota S engine - Wikipedia

The 1994-99 Celica 5S-FE was not updated with these changes, and continued to use a distributor and the older electronic control system and injectors. Any used engine marked as a 1997-01 Camry 5S-FE with a distributor is a Celica 5S-FE or older Camry 5S-FE. [citation needed] The 5S-FE has a 9.5:1 compression ratio.

5SFE Engine | eBay

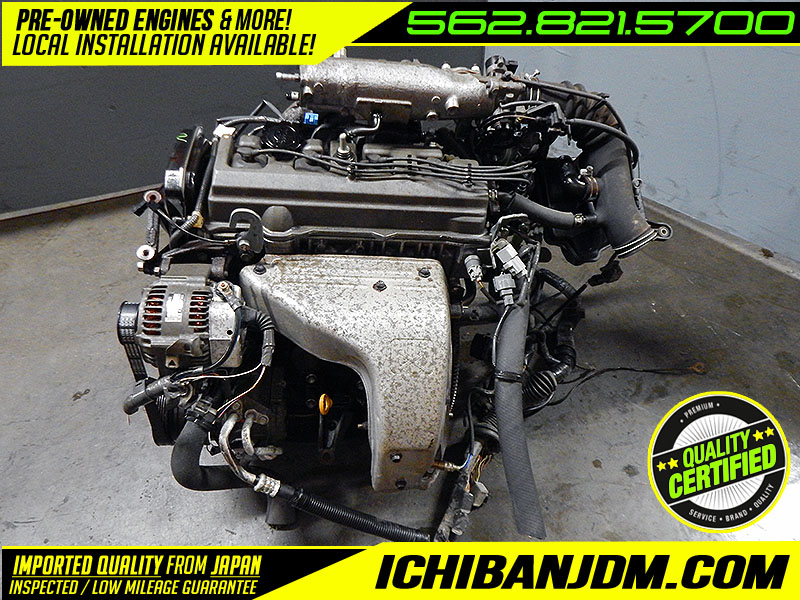

The engine 5S-FE is used JDM Engine imported directly from Japan that is used in TOYOTA CAMRY (1997 to 2001). It is 2.2L 4 cylinder Twin cam engine. It has estimated below 65000 Mileage which will def...
