Short answer first: Wheel balancing corrects uneven mass distribution between a tire and wheel so the assembly spins with its center of mass on the rotation axis. If it’s out of balance you’ll get vibrations, accelerated wear, and stress on suspension and bearings. Below is a complete, beginner‑friendly, step‑by‑step explanation, with every component described, the theory, how balancing machines work, and what can go wrong.

1) Why balancing is needed (the theory, with analogies)
- Imagine a spinning top that’s heavier on one side: it wobbles. A tire/wheel that doesn’t have its mass evenly distributed around the rotation axis behaves the same: at certain speeds that off‑center mass produces a periodic force that you feel as vibration.
- Static imbalance = center of mass is off in one radial direction (like a lump at 12 o’clock on a wheel). Produces a one‑plane up/down vibration (wheel hops).
- Dynamic (couple) imbalance = mass is not symmetric across the wheel’s plane (inner and outer faces have different mass distribution). Produces side‑to‑side shimmy, steering wheel oscillation.
- The balancing process adds small counter‑weights where needed so the mass is centered. Think of adding equal weights to the lighter side of a seesaw so it balances horizontally.

2) All components explained
- Tire (rubber component):
- Tread: road‑contact surface.
- Casing/body: internal layers (plies) carrying load.
- Bead: reinforced edge that seals against the rim.
- Sidewall: connects tread to bead.
- Belt package (under tread): steel or fabric belts that stabilize tread.
- Wheel / rim (metal part):
- Rim lip/flange: edge that holds the bead.
- Drop center: recess that helps mount/demount the tire.
- Wheel face/spokes: visible outer area.
- Valve hole: location of valve stem.
- Hub bore (center hole): fits over vehicle hub. Important for centering.
- Valve stem and TPMS:
- Valve stem: holds air. Valve core + cap. Many modern Kias have TPMS (Tire Pressure Monitoring System) sensor mounted in/at the valve stem—handle carefully.
- Hub and wheel mounting hardware:
- Hub flange: mounts wheel to car.
- Wheel studs or lug bolts/nuts: clamp the wheel to the hub.
- Hub-centric vs lug‑centric: hub‑centric wheels center on the hub bore; lug‑centric rely on lug nuts for centering.
- Balancing weights:
- Clip‑on weights: hook onto rim edge (steel rims).
- Adhesive (stick‑on) weights: glued inside rim (alloy wheels or TPMS).
- Weights come in small increments (usually grams or 1/4 oz increments).
- Balancing machine components:
- Shaft/mandrel: wheel mounts on this and spins.
- Cones/adapters: center wheel on shaft (match hub bore).
- Clamping nut/plate: holds wheel snug.
- Sensors/accelerometers/tachometer: detect vibrations and rotational position.
- Display/readout: shows where and how much weight to add (inner/outer).
- Brake or spin speed control: safely spins wheel to required RPM for measurement.
- Misc tools & supplies:
- Jack and jack stands (if balancing on car wheels).
- Lug wrench / breaker bar, torque wrench.
- Tire machine (if demounting tires).
- Valve core tool, air compressor, tire pressure gauge.
- Cleaning solvent, scrub brush (for rim mating surface).
- Dial indicator (for runout checks) or the balancer’s runout tool.

3) Typical symptoms of imbalance
- Steering wheel vibration at highway speeds (often 45–70 mph).
- Floorboard or seat vibration for rear-wheel imbalance.
- Uneven or rapid tread wear.
- Noisy ride, premature suspension or bearing wear.

4) How a spin balancer works (theory & what it measures)
- The machine spins the wheel at speed and uses sensors to detect the vibration amplitude and the angular position causing it.
- For static imbalance the machine finds the one point where a weight will counter the heavy spot (single plane).
- For dynamic imbalance the machine measures two planes (inner and outer) and calculates weight and placement on both planes.
- The machine shows degrees (angular position) and weight value. You place the appropriate weight at the marked locations, then re‑spin to verify.

5) Types of balancers
- Static/bubble balancer: very simple, only detects a single heavy spot. Mostly obsolete for modern vehicles.
- Electronic spin balancer: most common shop machine; measures static and dynamic imbalance.
- Road‑force balancer: applies a drum to simulate road load to detect tire flat spots or stiffness issues (useful for tire/wheel assemblies that still vibrate after normal balance).

6) Step‑by‑step balancing procedure (beginner mechanic)
A. Preparation / safety
- Park on level ground, chock opposite wheels, put car in park, use parking brake.
- Loosen lug nuts slightly before jacking.
- Jack vehicle and support with jack stands if removing wheel from car. Alternatively, use a tire machine to remove tire from wheel if needed.
- Wear eye protection and gloves.

B. Remove wheel
- Remove lug nuts and wheel. Inspect valve stem and TPMS sensor; avoid prying on valve stem area.

C. Inspect wheel & tire
- Check tire for obvious damage, sidewall bubbles, belt separation signs, nails, or foreign objects.
- Inspect rim for bends, cracks, corrosion on mating surfaces, or missing chunks of rim lip.
- Check tire pressure and re‑inflate to spec.
- Measure tire and wheel runout (optional but recommended): mount wheel on balancing shaft and use dial indicator to measure lateral (side‑to‑side) and radial (up‑down) runout at the rim and tread. If runout exceeds manufacturer/tire limits, replace/repair wheel or tire.
- Clean the rim mating surface and inner rim where adhesive weights will stick. Use solvent to remove corrosion, old adhesive, grease.

D. Mount wheel on balancer
- Use correct cone/adapters for hub bore so the wheel is centered on the balancer shaft. If wheel is not centered the machine’s readout will be wrong—proper centering is critical (think of the wheel being hung on the center pin exactly).
- Clamp wheel snuggly but do not crush valve or TPMS sensor area.

E. Set measurement parameters
- Enter wheel width, rim diameter, and offset into the machine if required (these affect correction calculations). If you don’t know offset, most machines can balance without it but better accuracy if you enter dimensions.

F. Spin and read
- Start spin cycle. Machine will spin and display weight location(s).
- It will indicate inner and outer placements and weight amounts for dynamic balancing.

G. Apply weights
- For alloy wheels with TPMS use adhesive weights on the inside of rim or clip inside via spoke (check wheel design). For steel wheels, clip‑on weights on rim flange are common.
- Clean surface again if adhesive weights are used. Peel backing and press firmly; use a roller to seat adhesive weights.
- Use correct weight size and add small increments; adding too much on one plane can create other imbalance.
- Clip‑on weights should be fully seated and not overhang; excessive hammering can damage wheel. Use weight pliers if available.

H. Re‑spin and verify
- Run machine again. If readout now says zero (or within spec), balancing is done. If not, repeat weight adjustment.

I. Reinstall wheel on vehicle
- Clean the vehicle hub mating surface of rust/corrosion. Use a wire brush if needed so wheel sits flush.
- Align wheel on hub. Thread lug nuts by hand to avoid cross‑thread.
- Torque lug nuts in a star/crisscross pattern to the factory specification. Typical passenger cars are often 80–110 ft·lb (check Kia spec for exact value). Use a calibrated torque wrench.
- After first 50–100 miles, re‑check lug torque.

7) What can go wrong — causes and troubleshooting
- Persistent vibration after balancing:
- Bent rim: wheel may require straightening or replacement.
- Tire defect: belt separation, internal break, or non‑uniformity. Road‑force testing or mount/demount to inspect.
- Runout too high: radial or lateral runout cannot be fixed by adding weights.
- Incorrect wheel centering on balancer: wrong cone/adapters or debris in hub bore leads to false readings.
- Loose or missing lug nuts: wheel not seated properly.
- Damaged TPMS or valve stem leaking air: can cause changing balance over time.
- Suspension or steering issues (worn tie rod, ball joint, wheel bearing): sometimes what feels like an imbalance is a worn component.
- Weights falling off:
- Dirty rim or improper adhesive; adhesive weights have temperature limits and need clean, dry surface. Clip‑on weights can corrode and pop off on alloy wheels if not used correctly.
- Damaging TPMS:
- Clip‑on weights over the rim lip can interfere with some TPMS valve stems or sensor housings. Use stick‑on weights if sensor is near weight location.
- Overweighting:
- Adding too much weight to correct imbalance on one wheel may shift problem to another plane. Use machine increments correctly.
- Machine calibration or operator error:
- Uncalibrated balancers, incorrect input (wheel dimensions), or improper clamping will give wrong answers.
- Corroded hub/wheel mating surface:
- Causes runout and mis-centering. Clean surfaces or use hub‑centric rings for oversized bore wheels.

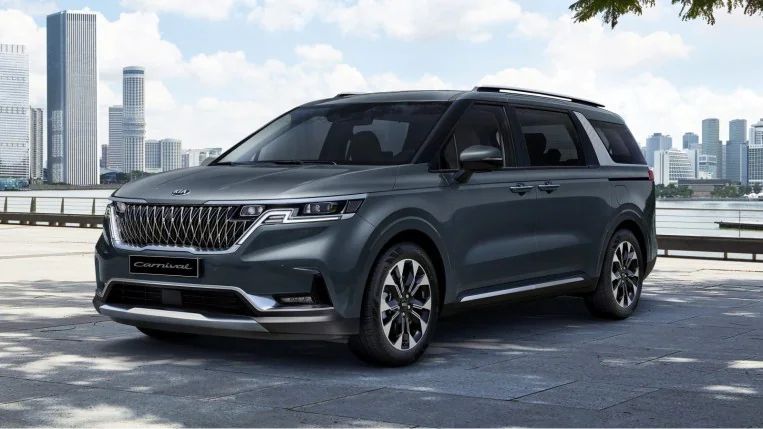

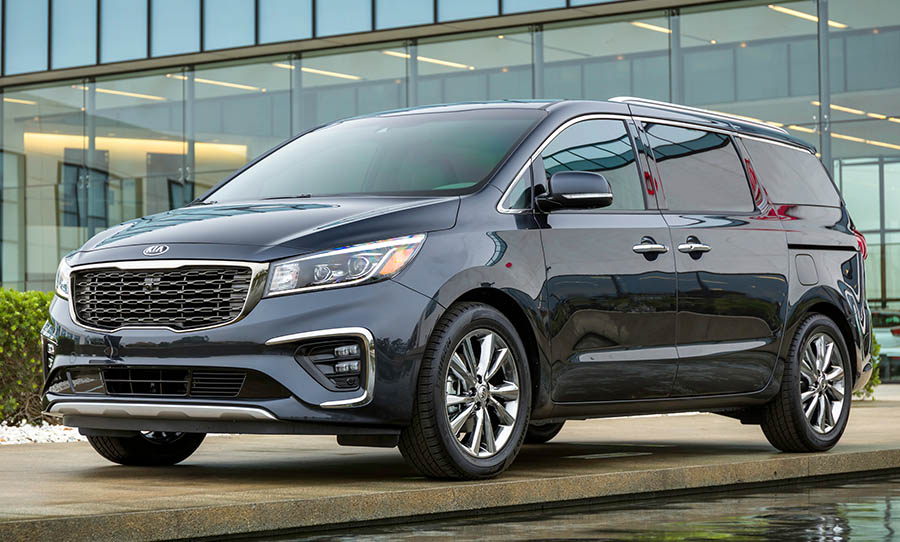

8) Special considerations for Kia Carnival / Sedona (minivans)
- These vehicles typically use TPMS; be careful removing and mounting tires to avoid damaging the sensor.
- Many Kia wheels are alloy—prefer adhesive weights inside the rim so wheel face remains clean and TPMS is unharmed.
- Hub‑centric fitment: OE wheels are usually hub‑centric, so clean hub thoroughly before mounting to ensure correct centering.
- If you have aftermarket wheels with larger center bore, use hub‑centric rings to avoid lug‑centric miscentering.
- Check owner’s manual for recommended wheel torque and tire pressure values.

9) When to call a pro
- If vibration persists after correct balancing and runout check, suspect internal tire failure or wheel damage requiring specialized equipment (road‑force balancer, wheel straightening machine).
- If you don’t have a balancer: professional shops can do a proper spin and road‑force diagnostic.

10) Quick troubleshooting checklist if vibration returns
- Re‑check tire pressure.
- Inspect for missing weights.
- Check wheel for bends, cracks, corrosion.
- Re‑mount wheel; clean hub and re‑torque lug nuts.
- Check suspension, bearings, tie rods, and driveshaft U‑joints (rear vibrations sometimes caused by driveshaft issues).
- Consider road‑force test or tire replacement if internal defect suspected.

11) Final safety and quality tips
- Always torque lug nuts to spec and in a star pattern.
- Re‑check torque after 50–100 miles.
- Use adhesive weights on alloy wheels and when TPMS is present near the rim edge.
- Keep a record of weights added and wheel orientation if you need to diagnose later.
- Don’t hammer weights excessively—use proper pliers or hammer with care.

That’s the full picture: what each part is, how imbalance happens, how the machine measures it, the step‑by‑step process, common failures, and how to troubleshoot. Follow the procedure carefully and consult Kia’s service manual for vehicle‑specific torque and tire pressure specs.
