Tools & parts
- Metric socket set (8–19 mm), deep sockets, 1/4" & 3/8" drive ratchets, extensions, universal joint.
- Breaker bar.
- Torque wrench (0–150 Nm).
- Floor jack + 2 jack stands (rated), wheel chocks.
- Engine support bar or second floor jack with wood block (to support engine if subframe removed).
- Oil drain pan, rags, gloves, eye protection.
- Gasket scraper or plastic razor blade, wire brush, brake cleaner.
- RTV sealant (Nissan/Silicone Black or equivalent for oil pans) OR correct paper/cork oil‑pan gasket if available.
- New oil-pan gasket or OEM RTV instructions (depending on model), new drain plug crush washer, new oil filter, fresh engine oil.
- Replacement pan bolts if corroded or damaged, and replacement oil pickup O‑ring/gasket or oil strainer if needed.
- Pry bar (light), rubber mallet.
- Torque angle gauge if required by service manual.

Safety first
- Work on a flat surface, engage parking brake and chock rear wheels.
- Disconnect negative battery terminal.
- Always support the car on jack stands — never rely on a jack alone.
- If removing or lowering subframe/crossmember, support the engine from above with an engine support bar or a second jack under the engine block (use wood block to protect oil pan).
- Wear eye protection and gloves; hot oil can burn — allow engine to cool.

Step-by-step procedure (general for R32 RB engines — follow factory manual for model-specific details)
1) Preparation
- Gather parts and tools. Check service manual for torque specs and bolt lengths/locations (some bolts are different lengths).
- Warm engine slightly to make oil flow easier, then turn off and let it cool enough to work safely.

2) Lift and access
- Loosen wheel lug nuts slightly (if needed for access), lift front of car with floor jack and place on jack stands under safe lift points.
- Remove undertray/splash shield(s), steering boot covers, or any covers blocking oil pan. On an R32 you may need to remove lower crossmember/subframe, steering rack or intermediate exhaust sections depending on engine model and aftermarket modifications.

3) Drain oil & remove filter
- Place oil drain pan under sump, remove drain plug and drain oil.
- Remove oil filter. Replace filter later.

4) Support engine
- If you will remove or lower the subframe/crossmember, support the engine from above with an engine support bar or use a jack under the engine block (NOT just the oil pan) with a wide wood block to spread load. Confirm engine is secure before removing supports.

5) Remove obstructions
- Remove any brackets, oil cooler lines, wiring harnesses, starter or transmission housings that block pan removal. Note bolt locations and lengths. Label bolts if needed.

6) Loosen oil pan bolts
- Loosen pan bolts progressively in a criss-cross pattern to relieve stress. Some oil pan designs use different length bolts; mark/remember locations. Remove all bolts and any locating dowels.

7) Separate pan
- Oil pan will likely be sealed with RTV — gently pry using a plastic scraper or thin pry bar at seams. Protect the mating surfaces; work around the perimeter evenly until the pan separates. Do not gouge the block mating surface.

8) Lower pan & inspect
- Lower pan carefully. Inspect inside for metal flakes, sludge, or bearing material. If you find significant metal, do not just reinstall — investigate (bearings, oil pump).
- Remove oil pickup/strainer assembly bolts. Check the pickup O‑ring/excess seal and replace if hard or damaged. Clean pickup screen.

9) Clean mating surfaces
- Scrape all old gasket material and RTV from pan and block mating surfaces. Use brake cleaner and a clean rag; avoid contaminating oil passages. Ensure surfaces are flat and clean.

10) New gasket/sealant & pan prep
- If using a paper/gasket, position it correctly. If using RTV (common on Nissan RB pans), apply a continuous, even bead according to RTV manufacturer and Nissan service instructions — usually 2–3 mm bead on the pan flange. Avoid excess; a thin continuous bead on the pan works best. Do not coat bolt holes unless instructed.
- Fit pan into position carefully so sealant seats evenly. Reinstall pickup/strainer with new O‑ring if required.

11) Install bolts and torque
- Hand-start pan bolts in correct locations (respect differing lengths). Tighten progressively in a criss-cross pattern to bring gasket together evenly.
- Final torque to factory specification. If you don’t have the exact spec on hand, use the service manual — typical oil pan bolt torque on many Nissans is light (single-digit to low double-digit Nm). Do not over-torque; over-tightening crushes gaskets and causes leaks.

12) Reassemble removed parts
- Reinstall subframe/crossmember, steering rack, exhaust sections, brackets, wiring, etc. Re-torque to spec.
- Install new oil drain plug crush washer and torque drain plug to spec.
- Install new oil filter (lubricate gasket), tighten to spec.

13) Refill oil & prime
- Refill with correct grade and amount of oil.
- Reconnect battery negative terminal.
- Before starting, turn ignition to ON and crank briefly a few times or use starter in short bursts to build oil pressure (or turn engine over with plugs removed — consult manual); monitor oil pressure gauge/light and check for leaks under vehicle.
- Start engine and let idle; check around pan for leaks. Recheck oil level after run and top up.

Common pitfalls & how to avoid them
- Not supporting the engine: removing crossmember without engine support can stress mounts and cause injury. Always support engine securely.
- Stripped or broken bolts: use correct sockets, penetrate seized bolts with PB Blaster, heat if necessary. If a bolt breaks, remove carefully — drilling/Extraction may be required.
- Mixing up bolt locations/lengths: mark bolt locations. Long bolts in wrong place can bottom out and crack pan or block.
- Poor sealing: incomplete removal of old gasket/RTV or uneven sealant bead => leaks. Clean thoroughly and apply RTV or correct gasket method.
- Over-tightening bolts: causes gasket failure or warping. Use torque wrench and factory specs.
- Not inspecting oil pickup: debris or loose pickup can lead to oil starvation; inspect screen and replace O‑ring.
- Reusing crush washer: always fit new drain plug washer to avoid leaks.
- Starting engine immediately without checking for leaks or priming: prime/pump up oil pressure first, then run briefly and recheck.

Replacement parts typically required
- Oil pan gasket or RTV (Nissan specified RTV if OEM method).
- Drain plug crush washer.
- Oil filter.
- Engine oil (correct grade and capacity).
- Pickup O‑ring or strainer gasket if degraded.
- Pan bolts if corroded or damaged.

Tool usage notes
- Torque wrench: tighten bolts in stages (e.g., finger tight → 50% torque → full torque) in a criss-cross sequence.
- Breaker bar: use to break loose seized bolts; use penetrating oil first and allow soak time.
- Gasket scraper: use plastic or blunt metal with care to avoid scratching mating surfaces.
- Engine support bar/use of jack: place wood block between jack and oil pan or block when supporting; keep load centered and static.

Final checks
- After initial run, check for leaks and proper oil pressure. Re-torque as required per manual after cool-down if specified.
- Dispose of old oil/filter responsibly.

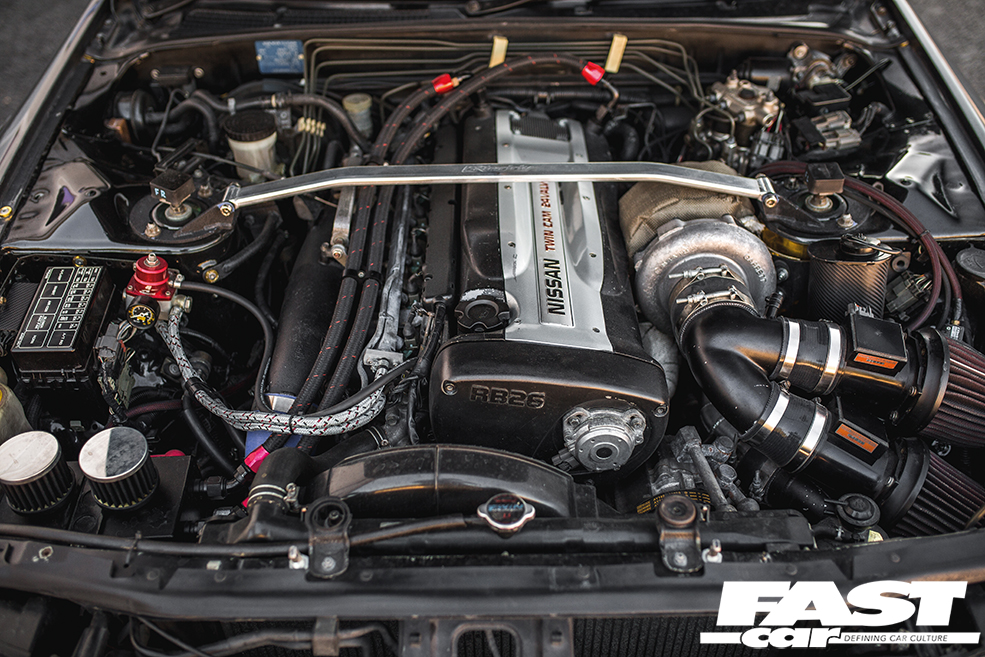

Follow the factory service manual for your specific R32 engine (RB20/25/26 variations) for exact bolt torque values, bolt length locations, and any model-specific steps.
